How to replace an Xsan storage area network (2019)

Apples Xsan changed the world for video editors forever.  Apple launched xsan clients for the Mac OS, purpose built Xsan storage, MacOS Server, a metadata controller and even fibre channel HBAs.  Finally it was here!  A storage area network designed specifically for Final Cut Pro.

xsan storage for storage area network

What could possibly go wrong?!?

Ghosted.  We called Apple.  Apple didn't call back.  We texted Apple, there were read receipts, but no replies.   Video editors everywhere were crushed when after months of not hearing from Apple we saw pics posted on Facebook with an iPhone.  Crushed!  Betrayed!  At least we have Avid, right?!?? Damnit Avid don't do that!

Apples Xsan Clients Icon

Here we are, all these years later and many still need to migrate away from what was once the gold standard of fibre channel networks and collaborative workflow.

Here are some practical items to look at when replacing your Xsan.

Will my fibre channel still work?

I would like to go back in time and slap the person who named the Fibre Channel protocol, it's confusing.  Click Here for a video on the difference between Fibre Channel & Fiber.

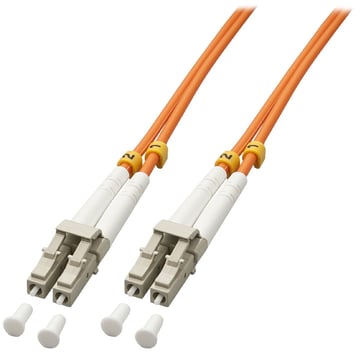

Fibre Channel Cable & 10GbE Fiber Cable

The same FIber Optic cabling can be used for Fibre Channel - or - Ethernet.  The exact same Fiber Optic cabling used for Xsan clients is commonly used for 10Gb Ethernet.

Yes, your cabling will work.

Despite cabling already in place, many facilities have opted to switch to Cat6 copper based cabling.  There is no performance difference in most cases and often the cost of a copper 10GbE switch + cabling is less than a 10GbE fibre optic switch.  Many facilities already have copper cabling in place ready to go.

No, your Fibre Channel HBA's & Switch won't work.  At least not in a 10GbE high speed NAS enviorment, which is the most common type of storage network for video production teams now a days.  This is mainly due to the fact that with a high speed NAS the data and metadata both go over a single connection.  Plus no need for a metadata controller!

Re-purpose Your Xsan Storage Array?

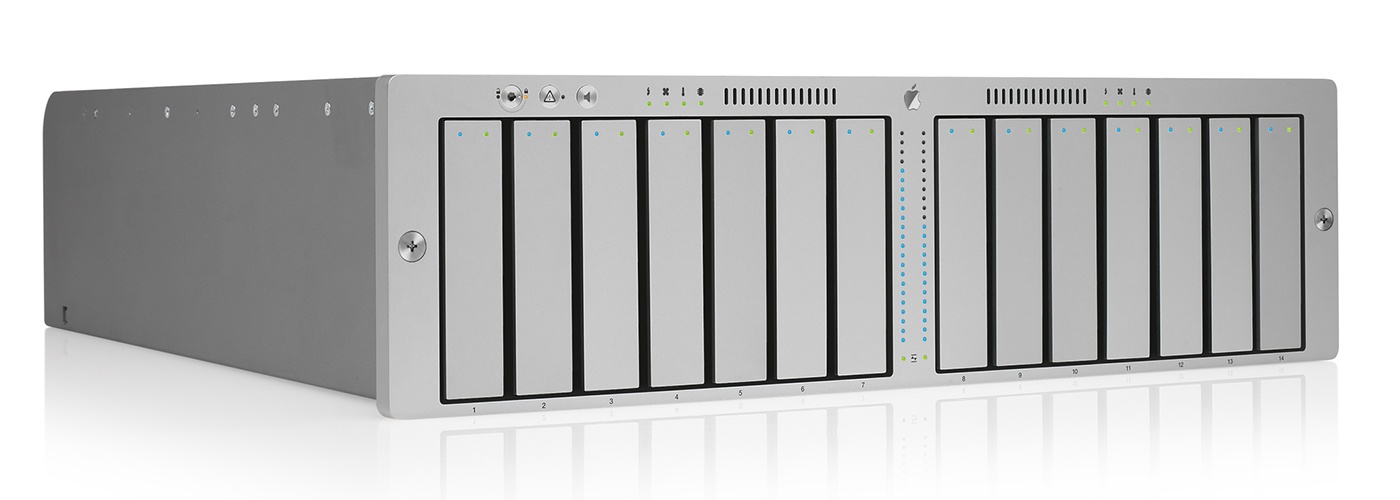

Hopefully you have more than the 2.5TB that was included in the original Xserve RAID storage array!  Many older Xsan systems have between 16TB and 200TB of storage space.

Storage gets more and more affordable every year.  100TB used to be $100k, these days, you can drop a zero off of that cost!  The right question to ask is how old is my storage.   Backblaze has done an amazing job over the years of analyzing drive life span and failuresThe summary is after 3 years is when drive failures become much more common.

A good rule of thumb is if your RAID is less than 4 years old, it's a good candidate to re-purpose with whatever Xsan replacement you get.  If your RAID is more than 4 years old it's probably best to replace it.

RELATED TOPIC - Learn more about SAN vs NAS in a video production environment.

This video outlines an example of re-purposing your Xsan storage

Costs?

Everything is custom, right?  How many times have we heard that, that means it's expensive.  High performance video storage is what we do at ProMAX and it's important to not over complicate or overprice it.

replacement costs for xsan storage area network

As an example, here are the basic costs of a mid-size Xsan replacement you might expect:

  • 192TB of High Performance storage = $18,995
  • New 16 Port 10GbE Switch = $2,000
  • 10GbE Adapters for 6 workstations = $4,500 (@ $700 Each)
  • Installation & Training = $2,000
  • Replacement costs = $27,500 + Tax

How long does this take?

How much time to swap your storage array data and metadata?We have replaced many Xsan systems over the years, some keep their Fibre Storage while others replace it.  If you're curious you can learn about the ProMAX Process.  Here is a common time frame.

  • Design & planning = 4 Hours
  • Physical Installation = 4 Hours
  • Software/User Set Up = 2 Hours
  • Transferring old data = 8 to 40+ Hours (this is inactive time, not hands on)
  • Training 4 Hours

All in all, the project should be under 20 hours of active time from your team, including design & planning.  To learn more about

More Questions?  Book a 15 Min Video Chat with a ProMAX engineer with at least 10 years of experience in both fibre channel & ethernet based networks.
