ProMAX MediaHub Pro

Tech Specs



Explore SoftwareBuild & Price

ProMAX MediaHub

Tech Specs



Explore SoftwareBuild & Price

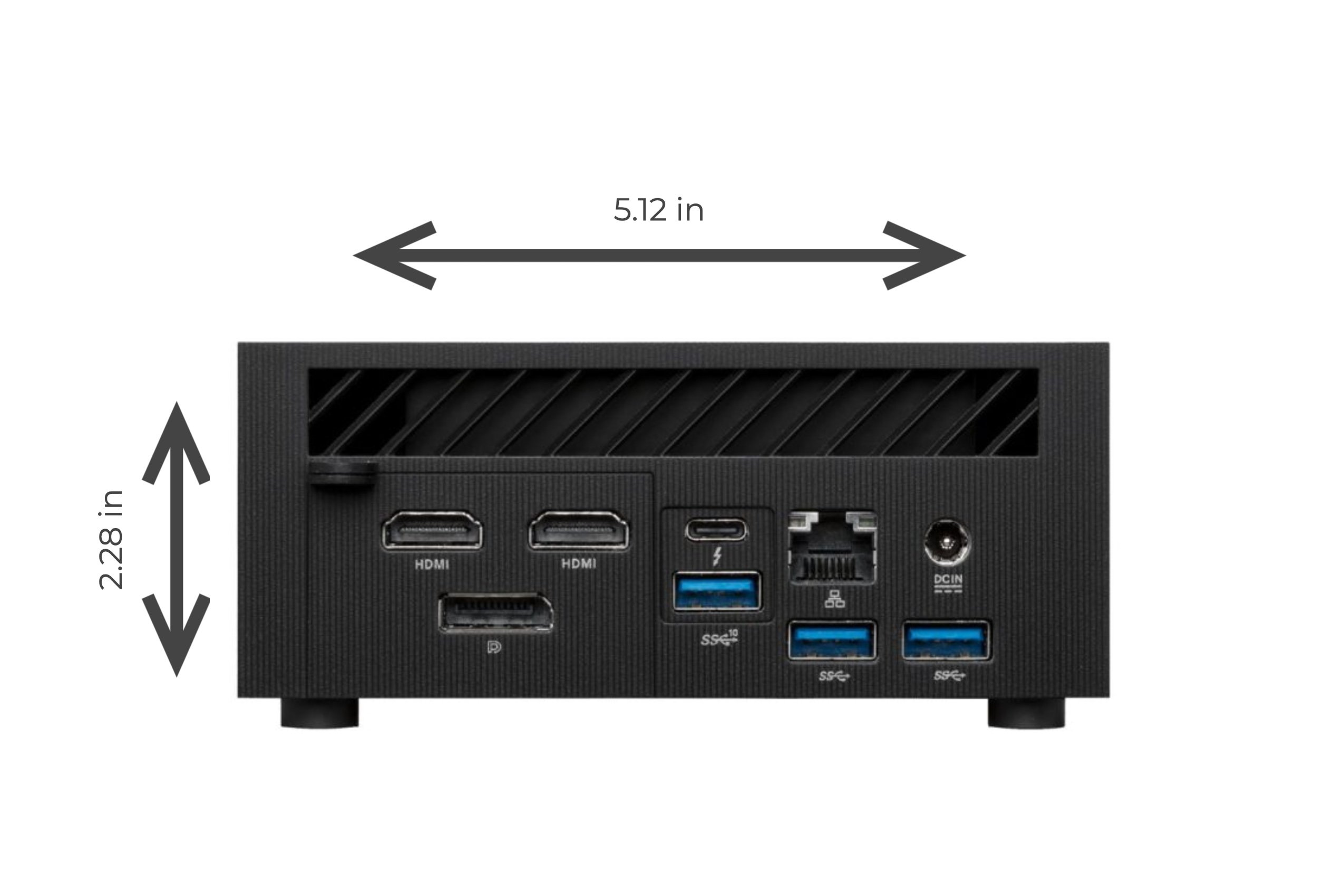

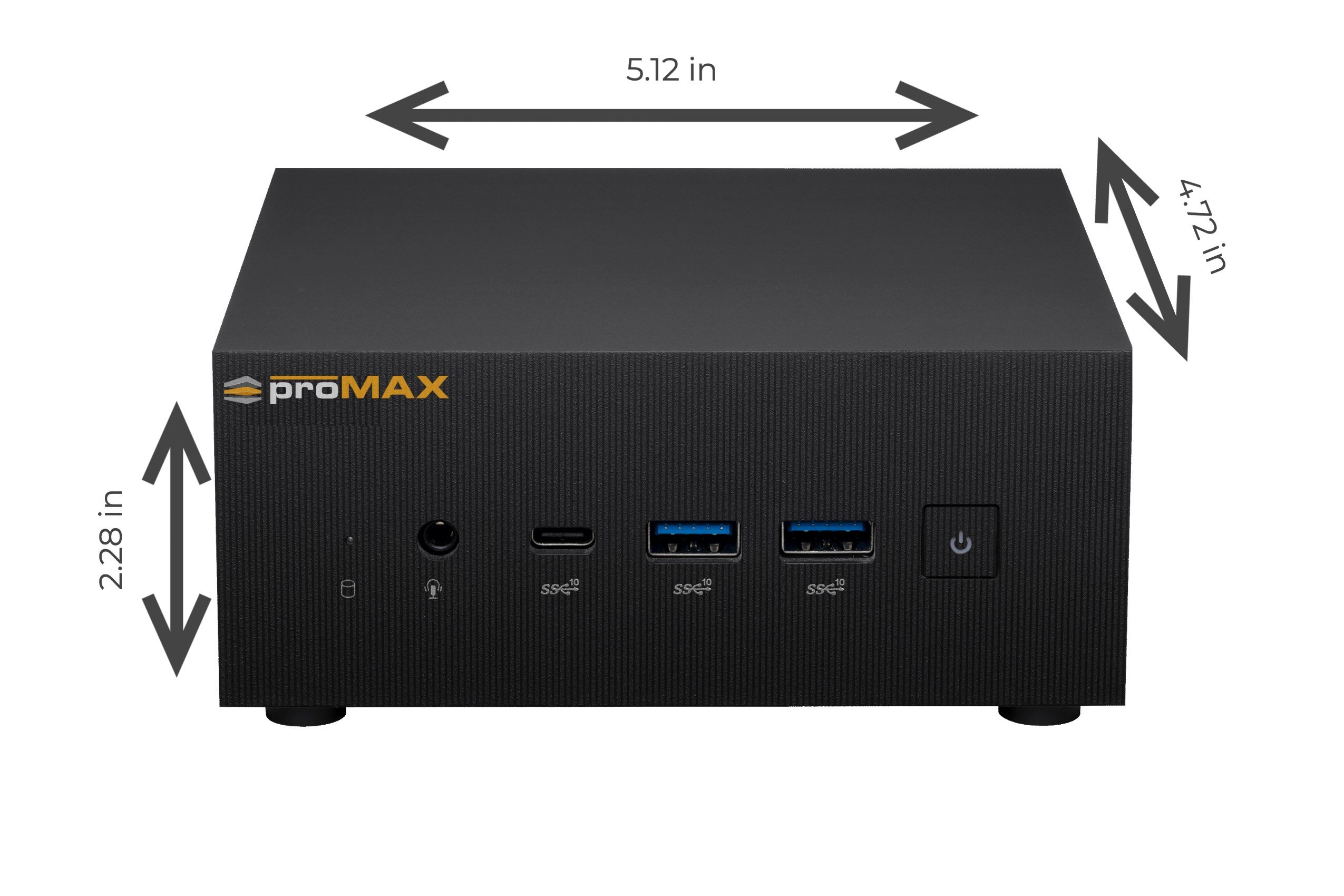

mediahub front w measurementsmediahub rear w measurements-1

• Performance

  • Write 350MB/s
  • Read 500MB/s

*Tested on mLogic mSpeed Thunderbolt 3.0 RAID enclosures using enterprise class 12G SAS HDDs

• Under the Hood

  • Intel® Core™ i3-101 10U
  • 250GB M.2 NVMe SSD
  • 8GB DDR4 RAM
  • Optional 1.92TB, 3.84TB or 7.68TB SATA3 SSD

• Connectivity

(1) 1GbE RJ45

(1) Thunderbolt 3 (3) USB3.1 Gen2, (1) USB Type-C

(1) HDMI

(1) SD card reader

• Drive Support

  • G-Tech, mLogic & Lacie Thunderbolt RAIDs
  • Most Thunderbolt / USB Storage formatted as NTFS or EXFat

  • Apple AFP and HFS+ formats supported via mac drive*

    *Mac Drive sold serperately

• Scalability

  • Up to 3x Thunderbolt RAIDs supported per server

• Physical

  • Power: TDP 25 W
  • DC Input Voltage Supported 19 VDC
  • Dimensions: L (4") x W (4") x H (2")
  • Weight: 1 lb

• Compatibility

  • MacOS, Windows
  • Optimized for Premiere, Avid, Resolve, After Effects, Pro Tools & C4D
  • Cloud Providers: Backblaze, Amazon & Dropbox
  • Protocol Support: NFS, SMB, AFP, CIFS, iSCSI, FTP, SSH
  • LTO Devices
    • M-Tape Thunderbolt LTO Devices


• Peripheral Support

  • 3rd Party Drives/RAIDs via Thunderbolt
  • Intel® Wi-Fi 6 AX201



MH Pro Front CropMH Prop 600

• Performance

  • Maximum Performance

    • Internal 4 xSSDs = 1500MB/s
    • External 8 Bay = 12ooMB/s
    • External 12 Bay = 1400MB/s

    Sustained Video Performance

    • 4 x SSDs = 1000 MB/s or 14 Streams of ProRes4K @ 560Mbs
    • 8 Bay = 650MB/s or 8 streams of ProRes4k @ 560Mbs*
    • 12 Bay = 900 MB/s or 12 streams of ProRes4K @560Mbs*

    Max vs Sustained Video Performance? Learn what matters

*Tested on mLogic mSpeed Thunderbolt 3.0 RAID enclosures using enterprise class 12G SAS HDDs

• Under the Hood

  • AMD Ryzen 5 3400G
  • ASRock x570 ITX Phantom Gaming 4
  • 250GB NVMe SSD
  • 16GB DDR4 RAM

• Connectivity

  • Network: (2) 10GbE RJ45, (1) 1GbE RJ45
  • Rear: (1) Thunderbolt 3, (4) USB3.1 Gen 2, (2) USB3.1 Gen1
  • Video Output: (1) HDMI, (1) DisplayPort 1.2

• Drive Support

    • G-Tech, mLogic & Lacie Thunderbolt RAIDs
    • Most Thunderbolt / USB Storage formatted HFS*, NTFS or EXFat
    • Samsung EVO Series SSD

    *Mac Drive sold seperately

• Scalability

  • Up to 4 Internal SSD for 32TB Internal SSD Storage
  • Up to 4x Thunderbolt RAIDs supported per server
  • Manage up to 128TB of active storage + offline storage

• Physical

  • Power: 1 x 160W
  • Dimensions: L (11.5") x W (7.28") x H (14.80")
  • Weight: 3lbs

• Compatibility

  • MacOS, Windows
  • Optimized for Premiere, Avid, Resolve, After Effects, Pro Tools & C4D
  • Cloud Providers: Backblaze, Amazon & Dropbox
  • Protocol Support: NFS, SMB, AFP, CIFS, iSCSI, FTP, SSH
  • LTO Devices
    • M-Tape Thunderbolt LTO Devices


• Peripheral Support

  • 3rd Party Drives/RAIDs via Thunderbolt, USB, or iSCSI
  • LTO Drives
  • Wi-Fi 6 802.11ax





MediaHub

MediaHub Pro

  MediaHub Transparent-2 MH Pro Front Crop
Common Use Single User Remote Editing Single or Multi User Remote Editing, On Location NAS, NAS for small teams
Default Storage Connectivity (1) Thunderbolt 3, (3) USB3.1 Gen2, (1) USB Type-C (1) Thunderbolt 3, (4) USB3.1 Gen 2, (2) USB3.1 Gen1
Default Network Connectivity (1) 1GbE RJ45 (2) 10GbE RJ45, (1) 1GbE RJ45
Max Internal Storage 1 x SSD 4 x SSD
10GbE Connectivity Must add external Thunderbolt to 10GbE NIC (2) 10GbE RJ45 Standard, upgradable to (4) 10GbE RJ45
Media Management & Transcode Software None, system use is only for remote editing ProMAX MAM, ProMAX Proxy & ProMAX Transcode Included
OS Windows 10 Windows Server Essentials 2019
AD Connectivity No Yes, requires upgraded OS
Rackmount Kit No No Rack Kit
Travel Case Hardcase Included  25" x 15" x 11" Hardcase
Size 4" x 4" x 2" 11.5" x 7.28" x 14.80"
